Products

Production, Mid-Size / Pilot-Scale Milling

Combining multiple powder processing solutions.

Two powder processing and size reduction platforms providing manufacturers with a range of milling options.

The SDx™ Series is one of the world's most advanced powder milling & screening platforms offering a wide range of material sizing and processing solutions.

Explore

SDx™ Series

SDx™ Series

Production / Mid-Size Milling & Screening Platforms

Multiple size reduction options in one easy-to-use platform.

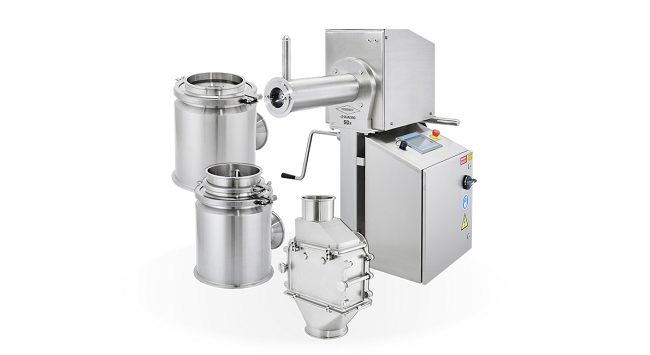

A collaboration between the Fitzpatrick Company and Quadro Engineering Corp, the SDx™ Series, is our next-generation production, mid-size / pilot-scale powder processing platform - with conical milling, security screening, and hammer milling capabilities.

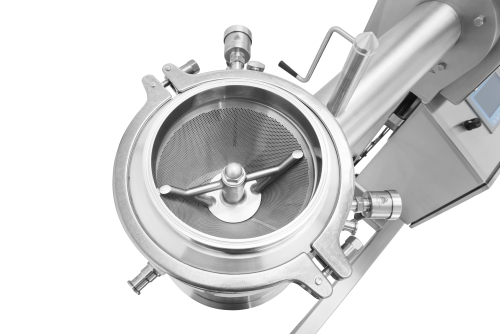

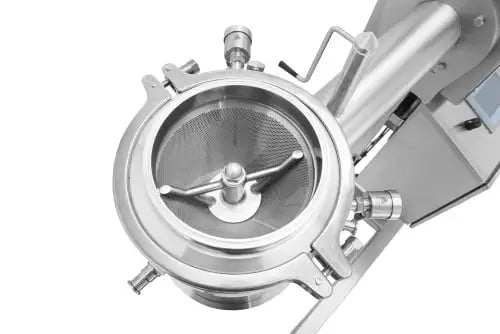

The production-scale SDx affords the ability to easily transfer between Quadro® Comil® conical milling, FlexSift security screening, and Fitzpatrick hammer milling.

Thanks to SMARTdetect™ technology, head recognition and RPM range adjustments are made automatically, enabling you to change heads in seconds, improving production efficiency.

Quadro_Feb19th-068

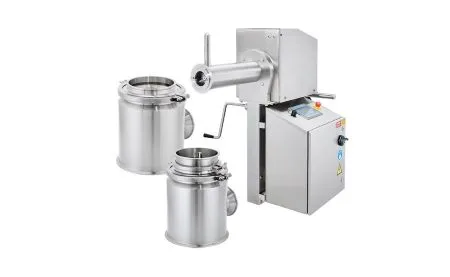

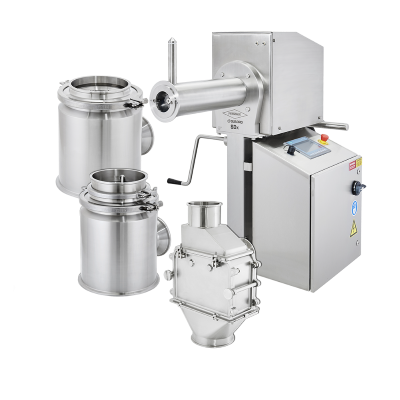

The mid-size SDx™ Series is one of the world’s most advanced 'multi head' milling and screening platforms providing a range of distinct powder processing solutions on a single, common drive - including Quadro® Comil® conical milling and FlexSift security screening technologies.

The Range

Production-Scale Milling & Screening

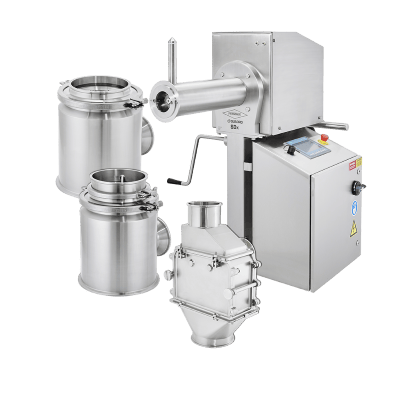

Production-Scale SDx™ Series

Conical milling, delumping, security screening & hammer milling.

The SDx Series affords manufacturers the ability to easily transfer between production-scale Quadro®Comil®, FlexSift security screening, and Fitzpatrick hammer milling

Thanks to SMARTdetect™ technology, head recognition and RPM range adjustments are made automatically, which means heads can be changed in seconds, improving efficiency.

Rest assured, that with the SDx Series, results achieved with your current equipment will be enhanced.

Offering the best value for your processing investment – three functionalities on one platform, providing the lowest long-term cost of ownership when compared to the purchase of individual units.

Read more about the Production-Scale SDx™ Series
on the Quadro Engineering website.

Pilot-Scale / Mid-Size Milling & Screening

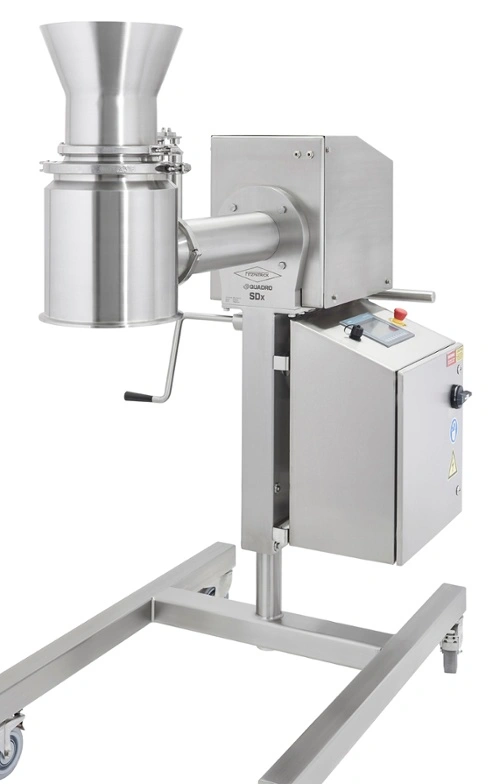

Mid-Size SDx™ Series

Effective, reliable, and efficient powder processing technology with scalable results.

The Mid-size SDx™ Series is the next phase of our cutting-edge powder processing and size reduction solutions.

Our mid-sized milling and screening platform offers two pilot-scale processing solutions on a single, common drive.

Flexible and easy to migrate from the lab, this model of the SDx™ Series provides the easiest path from research & development through to full production - sitting between the SLS - Scalable Lab System™ and the SDx™ Series production-scale powder milling & screening platforms.

Features at a glance
  • Greaseless gearbox.
  • High-efficiency screen options.
  • CIP improvements.
  • Best-in-class functionality with 40%–50%
    more capacity vs. like technologies.

Read more about the Mid-Size SDx™ on the Quadro                                   Engineering website.

In detail

SDx™ Series - Production, Mid-Size / Pilot-Scale Milling Platforms

Here are just some of the SDx™ Series platform options with a range of milling solutions.

In addition to meeting the requirements of cGMP, we want to ensure that the machines we develop are well-designed and safe for the User, so we follow a variety of industry-specific directives.

All Fitzpatrick products are designed and manufactured in a facility with an ISO 9001:2015 accredited Quality Management System.

The scope of this Quality Management System applies to all processes and activities which are controlled, managed and performed by employees within The Fitzpatrick Company.

The current Certificate of Registration, reference Certificate No.: CERT-0123529, has been issued by SAI Global and is effective until September 4, 2024.

 ISO-9001-LOGO-Horizontalweb

We offer a complete selection of ATEX-approved mills that meet the ATEX European Union directive for products used in potentially explosive atmospheres.

Our equipment is designed to handle the toughest milling applications, which is why professionals around the world choose us.   With models specifically designed to meet ATEX Zone 0/20 (1GD) or 1/21 (2GD) requirements, we provide the most comprehensively safe mills in the industry.

                         accred-atex-web   accred-ce_white-web

All equipment destined for Europe is CE marked and comes with an EU Declaration of Conformity.  It is certified to comply with the Machinery Directive 2006/42/EC,  the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU.

Our equipment is designed to meet a variety of international safety standards, so whichever country you are in, we can be compliant.

HubSpot Video



HubSpot Video



Speak to the experts

Unsure which of the SDx™ Series platforms is right for you?

Let us help you to solve your material sizing challenges. Complete the form below to request your no-obligation tech consultation.

MODULES

Our Range of Powder Processing Equipment

We offer solutions that provide reliable and repeatable results in the following areas:
Roller-Compaction-icon
Roller Compaction
Fitzpatrick specializes in designing world-class
Roll Compactors.
Milling-icon
Milling
Fitzpatrick specializes in designing milling equipment for precision particle size reduction.
